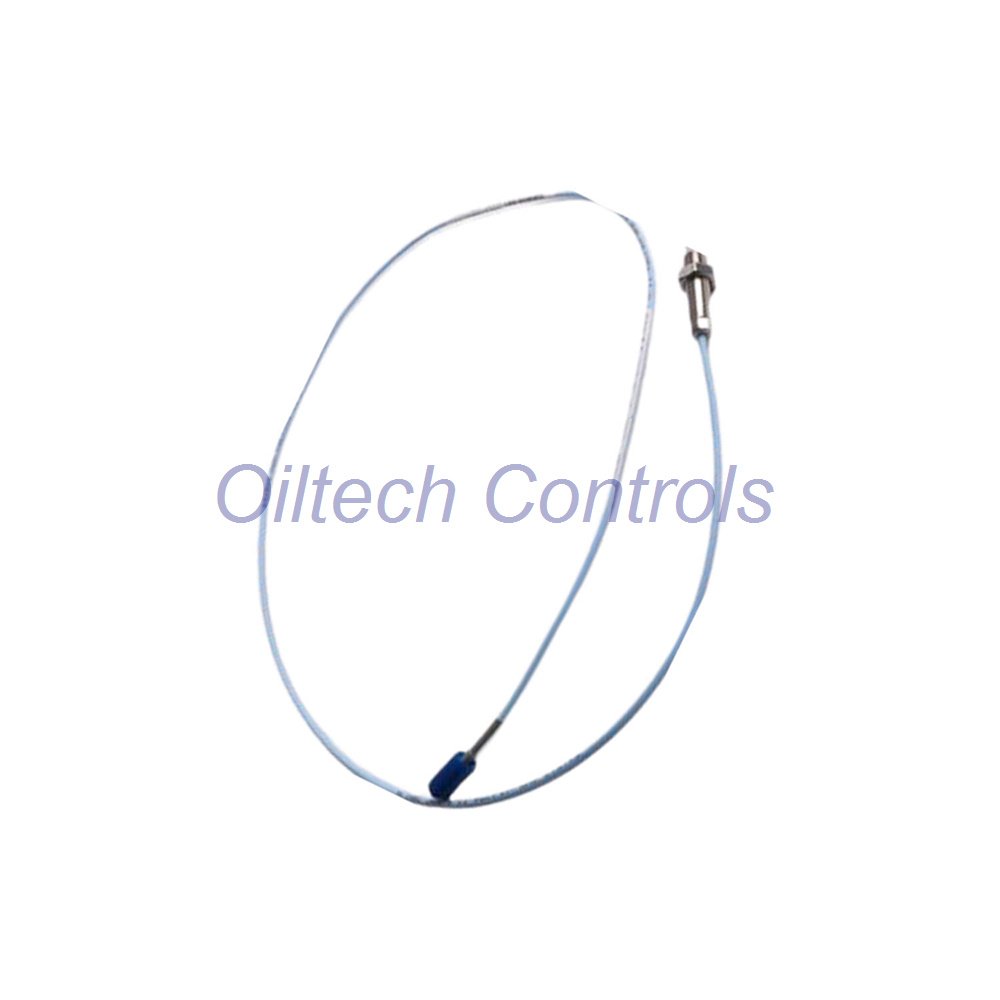

Bently Nevada 330103-00-18-10-02-00 3300 XL Proximity Sensor Probe In Stock

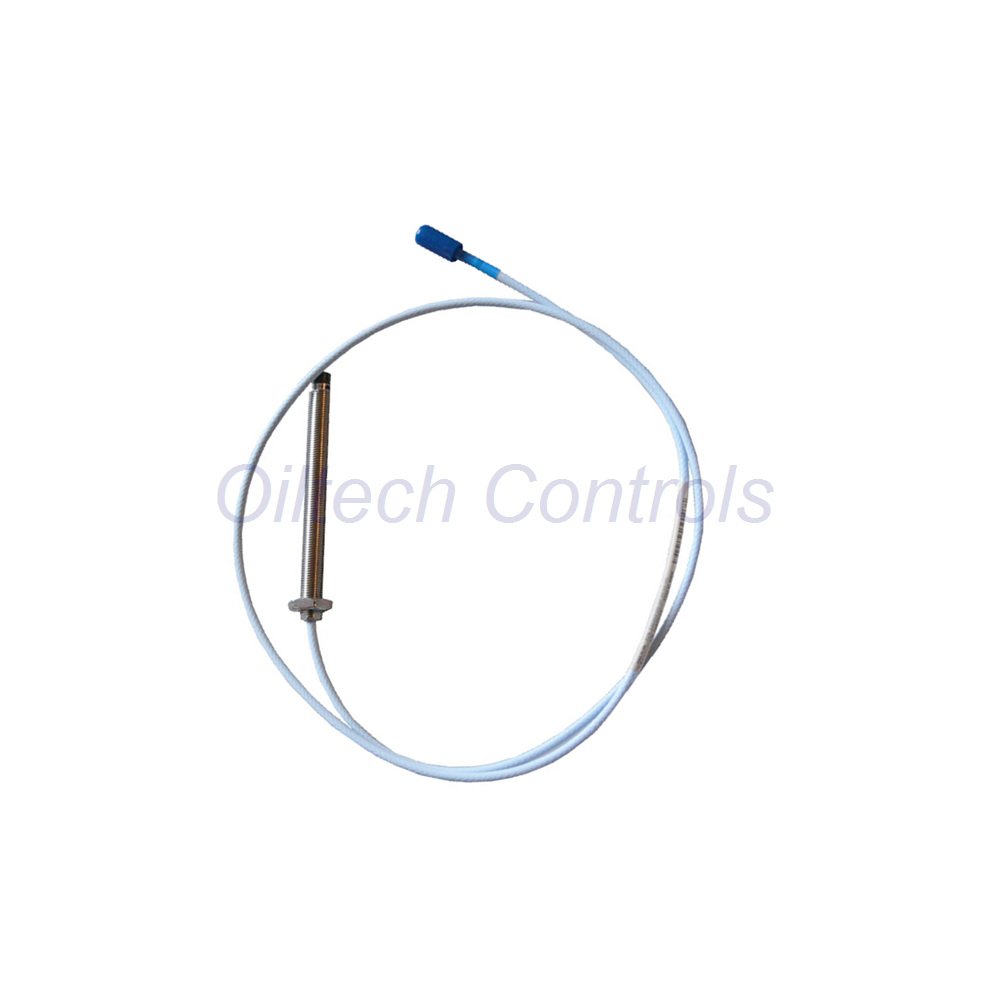

Technical AbstractThe 330103-00-18-10-02-00 is a high-precision 3300 XL 8mm Proximity Probe engineered for non-contacting shaft vibration and displacement measurements.This Metric series eddy current sensor provides a stable 2mm (80 mils) linear range, delivering high-fidelity data to 3500 series monitoring systems.Designed for harsh industrial environments, it features a PPS tip and ClickLoc coaxial connector to ensure signal integrity under high-vibration conditions.This specific configuration is optimized for deep-reach installation with an 180mm case length and a 1.0-meter total cable length.Configuration Breakdown330103 [3300 XL 8 mm Probe, M10 x 1 thread, without armor]— 00 [Unthreaded Length: 0 mm]— 18 [Overall Case Length: 180 mm]— 10 [Total Length: 1.0 meter / 3.3 feet]— 02 [Connector: Miniature coaxial ClickLoc, standard cable]— 00 [Agency Approval: None Required]Technical SpecificationsBrand: Bently NevadaModel: 330103-00-18-10-02-00Linear Range: 0.25 mm to 2.3 mm (10 to 90 mils)Gap Setting: Recommended -9 Vdc (approx. 1.27 mm)Operating Temperature: -52°C to 177°CDC Resistance: 7.59 ± 0.50 Ω (Center to Outer conductor)Case Material: AISI 303/304 Stainless SteelTip Material: Polyphenylene sulfide (PPS)Pressure Rating: Sealed with Viton O-ringHumidity Rating: 93% humidity per IEC 68-2-3 (56 days)Oiltech Controls Limited’s InsightThe 330103-00-18-10-02-00 is our top choice for fluid-film bearing machinery where metric mounting is standard.The 180mm case provides excellent reach for large bearing pedestals, ensuring the probe tip is perfectly positioned.We highly recommend using 3-conductor shielded triad cable for field wiring to minimize EMI noise over long distances.The ClickLoc connector is a significant upgrade over older threaded types, preventing “connector-back-off” in high-vibration zones.Applications & System CompatibilityTurbomachinery: Radial vibration and axial thrust position monitoring for gas and steam turbines.Pumps & Compressors: Detection of shaft dynamic motion and eccentricity in critical rotation equipment.Industrial Motors: Real-time monitoring of air gaps and thermal expansion.System Integration: Fully compatible with 3300 XL Proximitor Sensors and 3500/05 racks.Diagnostics & MaintenanceHealth Check: Use a multimeter to verify 7.59 Ω resistance; deviations indicate coil or cable damage.Diagnostic Capability: Supports frequency response analysis up to 10 kHz (depending on field wiring length).Environmental Protection: The PPS tip resists most industrial chemical lubricants and moisture.Shipping & WarrantyWarranty: 12-Month Quality Guarantee on all Bently Nevada units.Expedited Delivery: Fast international shipping via FedEx, UPS, and DHL.Package Condition: Factory new in original protective packaging.Professional FAQ & Selection GuideWhat is the risk of using this probe below -34°C? While the probe operates down to -52°C, temperatures below -34°C can cause the Viton pressure seal to become brittle, potentially leading to seal failure.Does this probe require a specific Proximitor sensor? Yes, it must be paired with a 3300 XL Proximitor Sensor calibrated for an 8mm probe and the specific 1.0m system length.How do I ensure the best signal-to-noise ratio? Keep the ClickLoc connector clean and dry. We recommend using connector protectors or silicone tape in oily environments.Is the M10x1 thread compatible with American standard mounts? No, this is a Metric (M10) thread. Do not attempt to force it into 3/8-24 imperial mounts; it will damage the stainless steel threads.Can I extend the cable length past 1.0 meter? The probe itself is fixed at 1.0m. You must use a 3300 XL extension cable to reach the total system length (usually 5m or 9m) required by the Proximitor.Contact Information Inquiries: [email protected], 86 158 8020 0923Copyright © 2026 Oiltech Controls Limited. All rights reserved. Original Source: https://www.oiltechcontrols.com/ All rights reserved.
