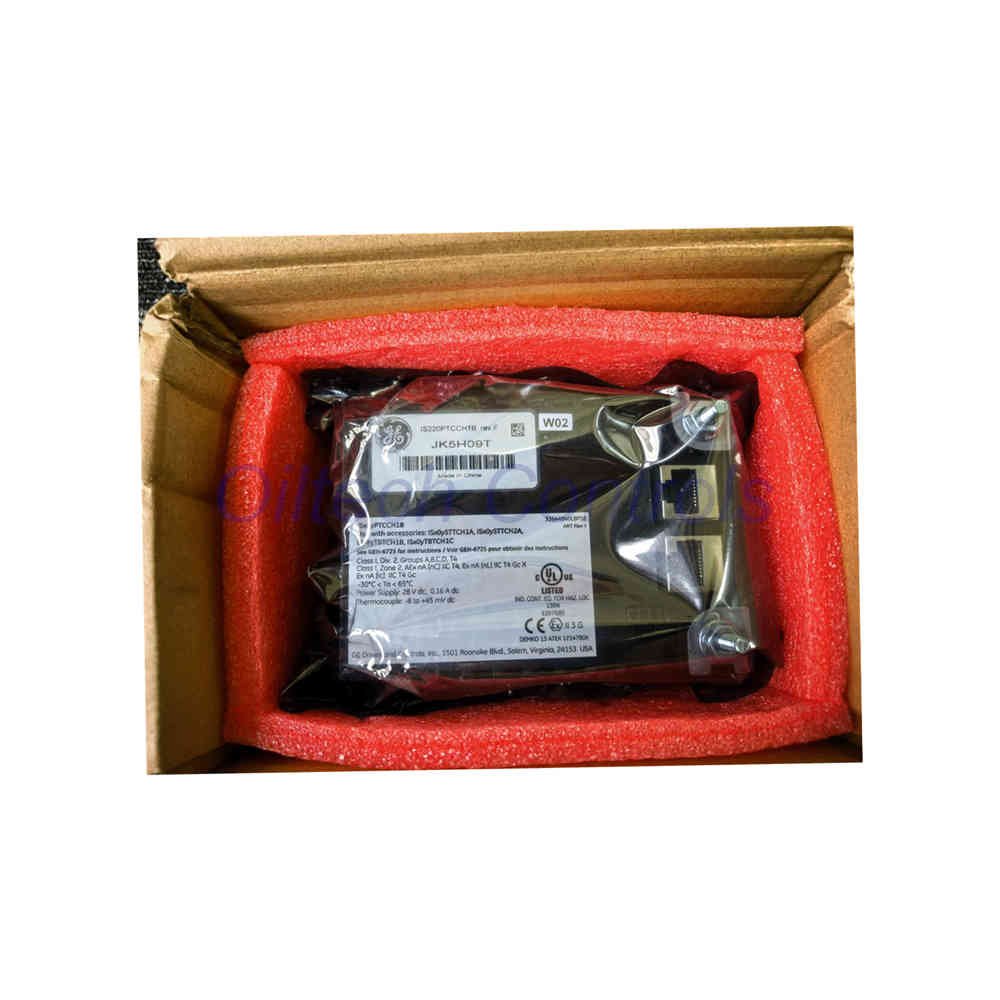

IS220PTCCH1B GE Mark VIe Thermocouple Input Module

Technical Engineering ProfileThe IS220PTCCH1B functions as a primary Thermocouple Input Module within the Mark VIe I/O pack suite.Designed with 12 combustion-optimized input channels plus one dedicated cold-junction reference channel.Supports versatile input types including E, J, K, S, and T thermocouples, plus ±45mV range.Engineered for high-reliability applications including Simplex, Duplex, and Triple Modular Redundant (TMR) configurations.Fully operational with both grounded and ungrounded field sensors within a 984-foot cable run limit.Operational Constraints & SpecsSeries Compatibility: GE Speedtronic Mark VIe Gas Turbine Control.Power Requirement: 28 Vdc supply at 0.16 Amp.Input Sensitivity: Supports signal mV inputs between -8 to 45 mV.Loop Resistance: Maximum allowable field cable resistance of 450 ohms.Interface Density: 12 channels optimized for combustion monitoring.Oiltech Controls’ InsightWe verify each IS220PTCCH1B for internal circuitry stability before dispatch to ensure zero-drift readings on critical temperature loops.Best suited for combustion turbine exhaust monitoring where signal noise rejection is paramount.Ensure shield grounding is consistent across all 12 channels to maximize accuracy in high-EMI turbine environments.For urgent requirements, we prioritize 24-28 hour dispatch via FedEx, UPS, or DHL.Need technical assistance? WhatsApp 86 158 8020 0923 or email [email protected] Industrial DeploymentGas Turbine Temperature Control and Monitoring.Combustor Flame Detection and Thermal Mapping.Mark VIe Distributed Control System (DCS) I/O cabinets.Exhaust Gas Temperature (EGT) measurement arrays.TMR-protected critical safety shutdown systems.Professional FAQ & Selection GuideQ: Can I mix thermocouple types on the same module?A: Yes, the module is software-configurable per channel, allowing you to mix supported types (E, J, K, S, T) as needed.Q: What is the maximum distance for field wiring?A: Field wiring can extend up to 984 feet (300 meters), provided your total loop resistance remains below 450 ohms.Q: How does this pack handle TMR architecture?A: The IS220PTCCH1B is built to operate in TMR groups, where three packs cross-check input data to ensure fault-tolerant turbine operation.Q: Does the module require recalibration during installation?A: No, these units are factory-calibrated for high precision; however, verify your cold-junction compensation settings in the control software.Q: Selection Advice: Why choose the PTCCH1B specifically?A: If your turbine requires high-density combustion monitoring with TMR capabilities, this unit is the validated standard for the Mark VIe series.Logistics & Quality AssuranceWarranty: Full 12-month performance guarantee.Dispatch: Rapid 24-28 hour processing.Shipping: Global transit via FedEx, UPS, and DHL.Support: Email [email protected] for technical documentation.Copyright © 2026 Oiltech Controls Limited. https://www.oiltechcontrols.com/ All rights reserved.All rights reserved.
