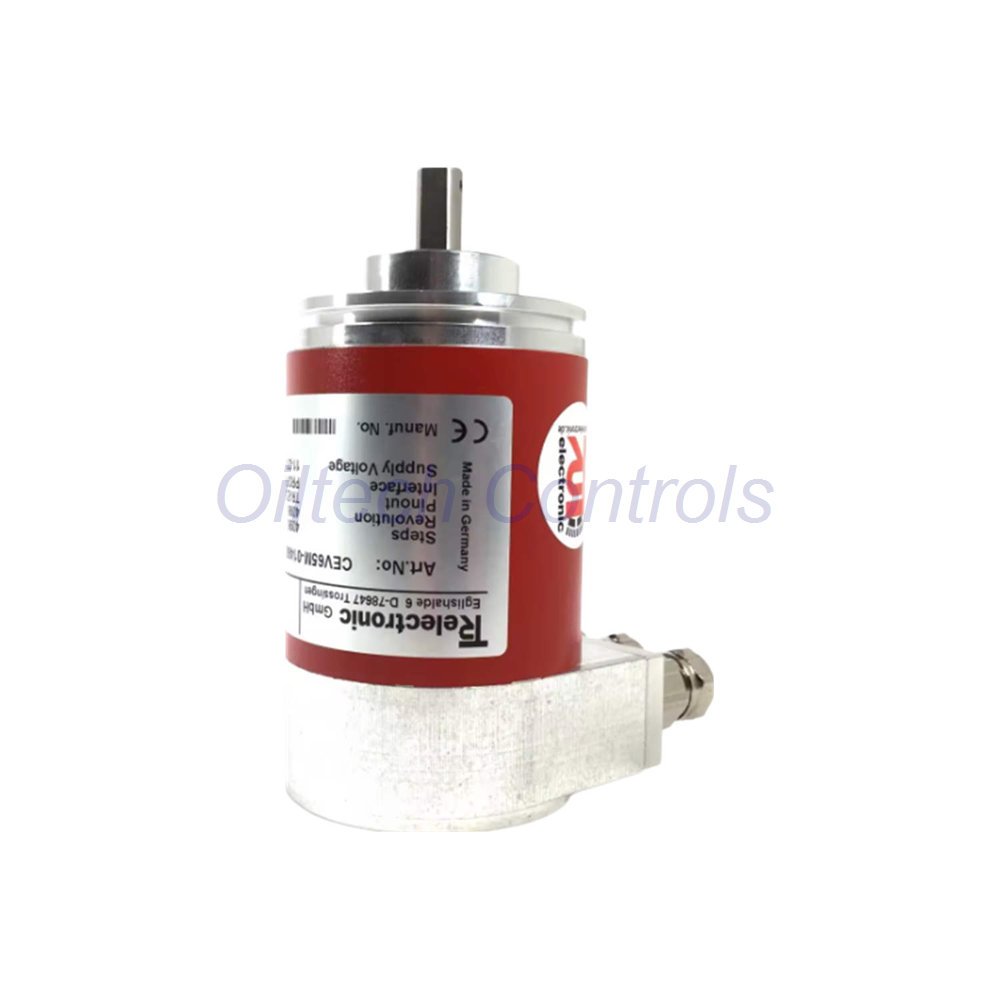

CEV65M-01360 TR Electronic Absolute Rotary Encoder SSI RS422

Product OverviewThe CEV65M-01360 is a high-precision multi-turn absolute rotary encoder for industrial automation.This TR Electronic device provides reliable position data using advanced electronic scanning.The SSI interface ensures rapid data exchange with modern control systems.It features a robust ZB36 flange design for stable mechanical mounting.Contact [email protected] for specific project integration advice.Technical SpecificationsBrand: TR ElectronicModel: CEV65M-01360Steps per Revolution: 8,192 steps (13-bit)Number of Revolutions: 4,096 revolutions (12-bit)Interface Type: SSI (Synchronous Serial Interface)Output Level: RS422Supply Voltage: 11-27V DCProtection Class: IP65 (Dust and Water Resistant)Temperature Range: -20 to 70°CShaft Dimensions: 10mm Diameter (10FL/19.5)Connection: 12-Pin Radial Connector (ST185E)Programmability: Full support for WinProg software adjustments.Installation and CompatibilityThe ZB36 flange fits standard industrial mounting brackets and housings.Use the 10mm flat shaft to ensure zero slippage during high-speed rotation.This unit is fully compatible with any SSI-ready PLC or motion controller.The radial connector orientation saves space in compact machine cabinets.Connect with us on WhatsApp: 86 158 8020 0923 for installation support.Diagnostics and MaintenanceThe CEV65M-01360 includes internal health monitoring for signal consistency.Use the F/R option to program clockwise or counter-clockwise counting directions.The Preset 1 2 functions allow for easy electronic zero-point alignment.Mechanical maintenance is minimal due to high-grade internal ball bearings.Typical ApplicationsPrecision position feedback in steel mill rollers and heavy machinery.Height control for automated warehouse lifting and storage systems.Synchronization for multi-axis packaging and bottling lines.Accurate tracking for renewable energy solar arrays and wind turbines.Shipping and WarrantyWarranty: 12-month quality guarantee from date of purchase.Packaging: Includes CEV65M-01360 encoder and the required mating plug.Express Delivery: Fast global shipping via FedEx, UPS, and DHL.Quality Assurance: Every unit undergoes rigorous factory testing before dispatch.Resources and FAQPlease download the technical manual for full wiring pinout details.Q: Is the resolution adjustable? A: Yes, via TR Electronic WinProg tools.Q: Does it retain position after power loss? A: Yes, it is a true absolute encoder.Email [email protected] to request the latest firmware files.Copyright © 2026 Oiltech Controls Limited. All rights reserved.Original Source: https://www.oiltechcontrols.com/All rights reserved.
