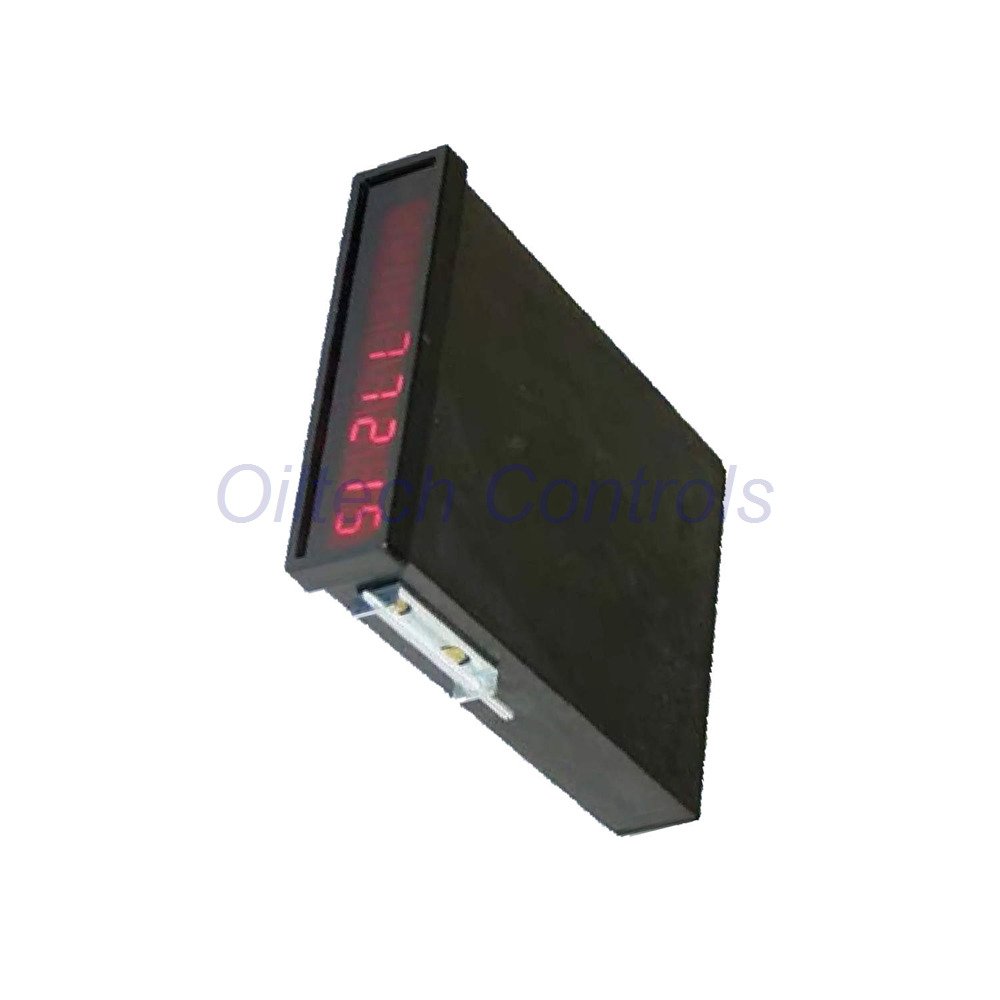

485-80020 TR Electronic TAmini SSI Master Slave Display Module

Product OverviewThe TR Electronic 485-80020 belongs to the high-precision TAmini series.This 8-digit Master/Slave display unit provides versatile feedback for industrial encoders.It supports SSI Master, SSI Slave, and Monitor operating modes for system flexibility.Engineers can program the device via USB using the TRWinProg software.The unit allows cascading of several slave displays for multi-point visualization.Its compact front panel mounting design saves valuable space in control cabinets.Technical SpecificationsBrand: TR ElectronicModel: 485-80020Series: TAminiSupply Voltage: 11 to 30 V DCDisplay: 8-digit 7-segment LED with 10mm character heightCurrent Consumption: Less than 350 mA without loadSSI Frequency: High-speed range from 100 kHz to 750 kHzSSI Data Bits: Adjustable from 12 to 31 bitsCode Types: Compatible with Gray and Binary SSI codesProtocols: Supports TRWinProg, EprogW32, LTProg, and LLB via RS485/RS422Refresh Time: Adjustable from 50 ms to 2000 msTemperature Range: Reliable operation from 0 °C to 60 °CEnvironmental Protection: Rated at IP 43 per DIN EN 60529Display Capacity: Handles data up to 26 Bit depthInstallation and MaintenanceMounting Dimensions: Fits standard 92.5mm x 21.5mm panel cutouts.Panel Thickness: Compatible with front panels up to 4 mm thick.Easy Wiring: Uses high-quality plug-in connectors for fast field replacement.Simple Calibration: Adjust offset and scaling directly via the PC interface.Diagnostic Capability: Includes a warning level for monitoring supply voltage health.Compatibility and ShippingDevice Interoperability: Seamlessly integrates with TR Electronic absolute encoders and sensors.Warranty: Includes a standard 12-month warranty for all hardware components.Package List: One 485-80020 unit with secure industrial packaging.Fast Delivery: Worldwide express shipping via FedEx, UPS, or DHL.Expert Support: Contact us at [email protected] for technical aid.Direct Inquiry: Message via WhatsApp: 86 158 8020 0923.Typical ApplicationsLinear Positioning: Displaying values from LLB laser distance measuring modules.Rotary Monitoring: Real-time position tracking for SSI absolute rotary encoders.System Synchronization: Synchronizing multiple displays in complex automated production lines.Quality Control: Providing clear visual metrics for machine operators in harsh environments.Frequently Asked Questions (FAQ)How do I set the scaling factor? Use the TRWinProg software via the USB port.Does it support imperial units? Yes, the unit is switchable between mm and Inch.Can I hide leading zeros? Yes, the leading zeros are programmable as visible or not.Please download the technical manual to ensure proper electrical integration and software setup.Copyright © 2026 Oiltech Controls Limited. All rights reserved.Original Source: https://www.oiltechcontrols.com/All rights reserved.
