1747-SN | Allen-Bradley RIO Scanner | Long-Range I/O – SLC 500

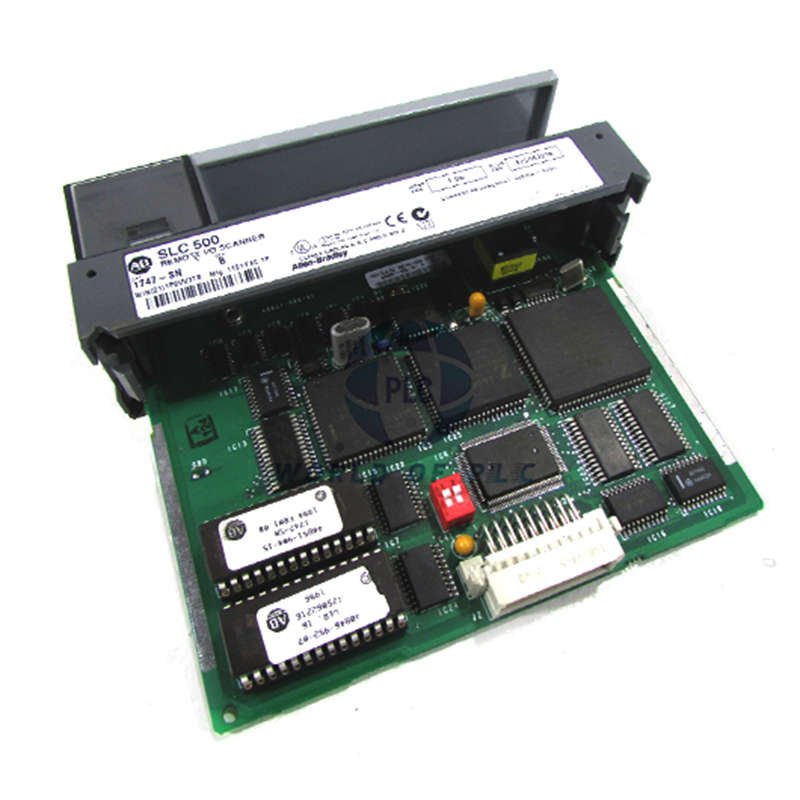

Allen-Bradley 1747-SN Remote I/O Scanner ModuleExtend your control system over long distances. The 1747-SN scanner module connects your SLC 500 processor to remote I/O devices. It lets you place I/O racks far from the main controller. This saves wiring costs and increases flexibility. The module fits in one chassis slot and is easy to set up.Key FeaturesLong Distance Control: Works over cables up to 10,000 feet long.Fast Data Transfer: Supports two baud rates: 57.6K and 230.4K.Multiple Device Support: Connects up to 16 devices (32 in special mode).Wide Compatibility: Works with SLC 5/02, 5/03, 5/04, 5/05 processors.Easy Setup: Uses simple DIP switches for baud rate selection.Technical SpecificationsBrand: Allen-BradleyModel: 1747-SNSeries: SLC 500Module Type: Remote I/O ScannerCommunication Port: One Remote I/O (3-pin)Baud Rates: 57.6 Kbaud, 230.4 KbaudMax Cable Length: 3048 meters (57.6K), 762 meters (230.4K)Max Devices: 16 normal mode, 32 complementary modeBackplane Power: 600 mA @ 5V DC, 90 mA @ 24V DCOperating Temperature: 0 to 60°CStorage Temperature: -40° to 85°CHumidity: 5 to 95% (non-condensing)Weight: 1 pound (0.45 kg)Cable Type: Belden 9463Termination: 82 Ohm resistor requiredInstallation GuideInstall the 1747-SN in any SLC 500 chassis slot. Use Belden 9463 cable for connections. Set the baud rate using the two DIP switches. Remember to add 82-Ohm resistors at both ends of the network. Always turn off power before module installation.Compatibility InformationControllers: SLC 5/02, 5/03, 5/04, 5/05Network Topology: Daisy-chainSupported Devices: PanelView terminals, PLCs, third-party adaptersWarranty & ShippingWe provide a 12-month warranty on this module. We ship worldwide using reliable carriers: FedEx, UPS, and DHL.Frequently Asked QuestionsWhat is the maximum cable length for the 1747-SN? At 57.6K baud, you can use up to 10,000 feet (3048 meters) of cable.How many devices can I connect to one scanner? You can connect up to 16 devices in normal mode, or 32 in complementary mode.What cable should I use with this module? Belden 9463 cable is recommended for best performance.How do I set the communication speed? Use the two DIP switches on the module to select the baud rate.Do I need special termination? Yes, you need 82-Ohm, 1/2 Watt resistors at both ends of the network.Download Complete ManualFor full installation and wiring details, get our complete technical manual.Download SLC 500 Hardware Manual Here© 2025 World of PLC Limited. All rights reserved. Original Source: https://www.oiltechcontrols.com/ Technical Support Contact: Email: [email protected] | Phone: 86 158 8020 0923 Partner: PLCDCS HUB Limited https://plcdcshub.com/ | PLC Pioneer Limited https://plc-pioneer.com/
