GE Fanuc Power Supply | RX3i Expansion Module – IC694PWR331

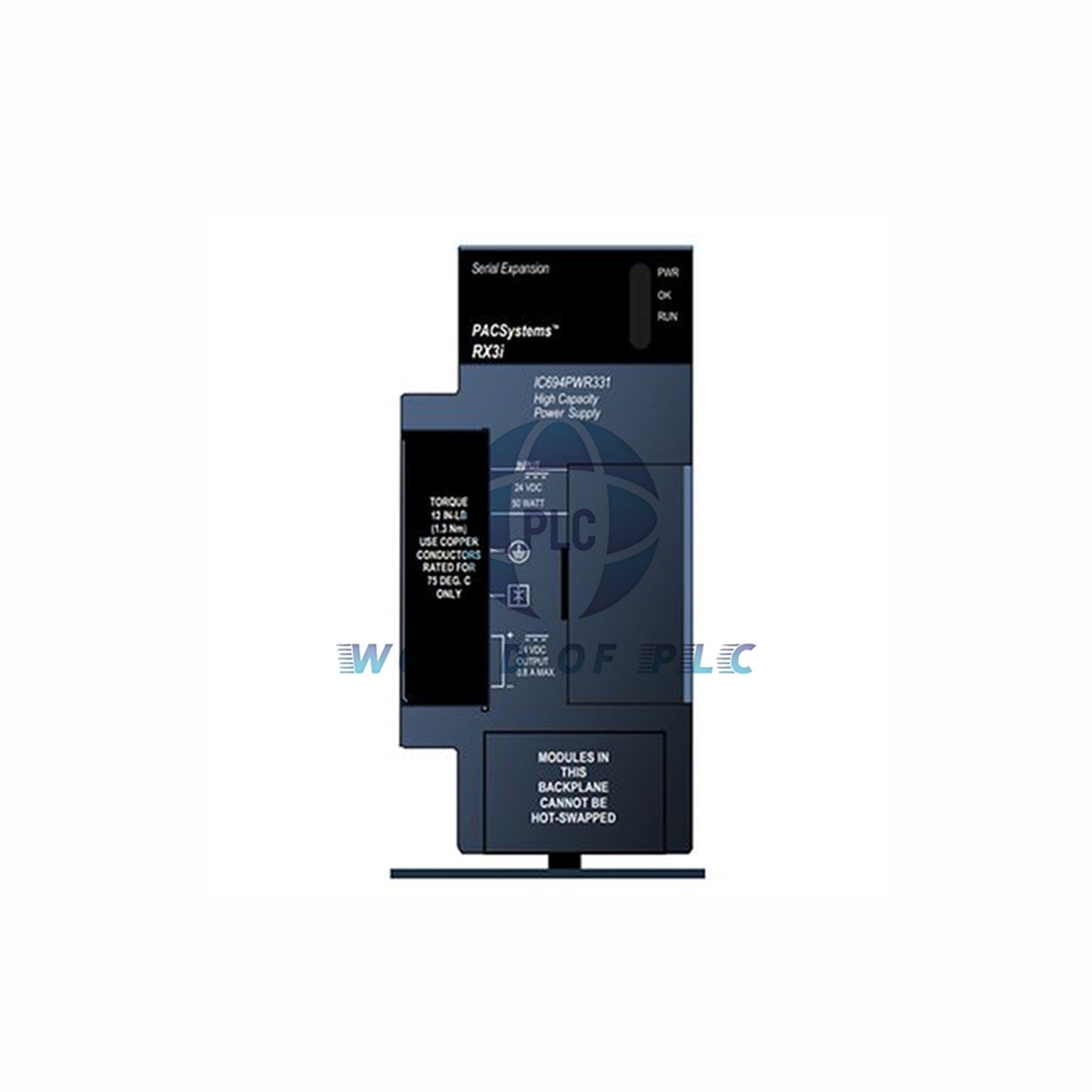

GE Fanuc Emerson IC694PWR331 Expansion Power Supply ModuleThe IC694PWR331 from GE Fanuc Emerson delivers versatile power distribution for PACSystems RX3i remote and expansion applications. This high-capacity power supply module supports various system configurations with multiple output options. It provides reliable power for remote bases and high-speed serial communication networks.Technical Specifications & Performance DataBrand: GE Fanuc EmersonModel: IC694PWR331Module Type: Expansion Power Supply / Remote Base Power SupplyNominal Voltage: 24 Volts DC inputTotal Output Capacity: 30 Watts maximum5V Output Rating: 30 Watts full capacity24V Relay Output: 15 Watts dedicated power24V Isolated Output: 20 Watts separate capacityCurrent Capacity: 0.8 Amps at 24V DCBase Compatibility: High-speed serial bases supportedPower Distribution & Output ConfigurationThe IC694PWR331 provides three distinct output configurations for flexibilityIt delivers full 30-watt capacity at 5V output for logic circuitsThis module supplies 15 watts for relay applications at 24VIt offers 20 watts of isolated 24V power for sensitive devicesThe power supply maintains stable 0.8 amp current output at 24V DCIt ensures reliable power distribution across multiple load typesSystem Integration & Application SupportThis expansion power supply supports remote base installations for distributed systemsIt enables high-speed serial base operation with adequate powerThe module provides versatile power solutions for various industrial setupsIt facilitates system expansion projects requiring additional powerThis power supply ensures stable communication performance in networksIt supports multiple device configurations with different power needsElectrical Characteristics & PerformanceInput Voltage Range: 19-30V DC for flexible power sourcingEfficiency Rating: >85% for reduced energy consumptionRipple and Noise: <100mV peak-to-peak maximumLoad Regulation: ±2% for consistent output under varying loadsOverload Protection: Automatic current limiting for safetyOperating Temperature: 0°C to 60°C industrial rangeInstallation & Mounting OptionsThis power supply module installs in standard RX3i backplane slotsIt supports remote base configurations for distributed controlThe module enables high-speed serial network expansionInstallation requires proper ventilation and clearance for coolingIt maintains compatibility with various base units in RX3i systemsThe design ensures easy integration into existing systemsProtection Features & ReliabilityThe module includes overcurrent protection circuits for safetyIt features thermal overload protection against overheatingThis power supply provides short-circuit protection for connected devicesIt maintains stable output under varying load conditionsThe design ensures long-term reliability in industrial environmentsIt offers electrical isolation between output typesPackaging & Shipping InformationYour order includes one IC694PWR331 Expansion Power Supply ModuleAll shipments include comprehensive 12-month warranty coverageWe provide worldwide shipping via FedEx, UPS, and DHL servicesStandard packaging includes installation guidelines and technical documentationComparison with Related RX3i ModulesThe IC694PWR331 specializes in expansion power supply applicationsFor network scanning functionality, consider the IC695SPF010 moduleThe IC695STK001 provides starter kit components for system setupProfessional FAQ SectionWhat is the total power capacity of this expansion power supply?The IC694PWR331 provides 30 watts total output capacity with multiple voltage options.What types of bases does this power supply support?It supports remote bases and high-speed serial bases for various system configurations.How much current can the 24V output provide?The 24V output delivers 0.8 amps maximum for powering relays and other devices.What are the different output configurations available?It provides 5V at 30W, 24V relay at 15W, and isolated 24V at 20W outputs.Is this power supply suitable for remote installations?Yes, it specifically functions as both an expansion and remote base power supply.© 2025 World of PLC Limited. All rights reserved. Original Source: https://www.oiltechcontrols.com/ Technical Support Contact: [email protected] | Phone: 86 158 8020 0923 Partner: PLCDCS HUB Limited https://plcdcshub.com/ | PLC Pioneer Limited https://plc-pioneer.com/
