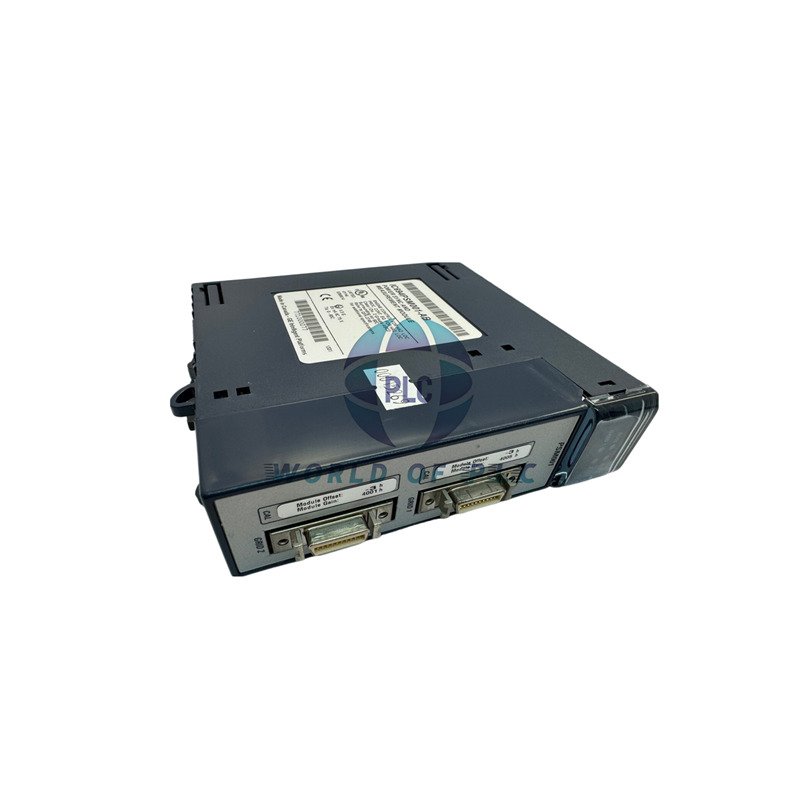

Emerson IC694BEM320 I/O Link Module – Flexible Expansion for RX3i Control Systems

�� OverviewThe Emerson IC694BEM320 I/O Link Module is a high-performance communication interface designed for GE Fanuc Series 90-30, 90-70, and PACSystems RX3i PLCs. It provides reliable, noise-immune I/O Link network connectivity, enabling distributed control, data exchange, and remote expansion across multiple automation devices.Engineered for industrial applications such as CNC systems, packaging machines, and factory automation, this module ensures smooth data transmission and flexible scalability within your control network.⚙️ Key FeaturesConfigurable I/O: Choose between 32 or 64 input points via simple jumper settings.Dual Serial Communication: Supports RS-485 and RS-422 protocols for high-speed data transfer.Broad Compatibility: Works seamlessly with RX3i, 90-30, 90-70, and GE Fanuc CNC Series 15, 16, 18.Scalable Architecture: No hard limit on the number of modules per master controller – expand as needed.Backplane Power Supply: Draws 5 V DC directly from the system backplane – no external supply required.Industrial Reliability: Designed for indoor use with robust RS485/RS422 cabling to minimize noise interference.�� Technical SpecificationsParameterDescriptionBrandEmerson (formerly GE Fanuc)ModelIC694BEM320SeriesPACSystems RX3iModule TypeI/O Link Network InterfaceInput Points32 or 64 configurable via jumperCommunication Ports2 serial ports (RS485 / RS422)Protocol SupportGE Fanuc I/O LinkNetwork RoleSlave processorPower Supply5 V DC from backplaneCompatibilitySeries 90-30 / 90-70 / RX3i / CNC Series 15, 16, 18InstallationRX3i universal backplaneEnvironmentalIndoor use only – avoid humidity�� Application ExamplesCNC Automation: Connect multiple servo drives and position sensors to the main CNC controller, enabling precise motion control with minimal wiring.Packaging Lines: Integrate distributed I/O modules to coordinate conveyor motors and sensors, enhancing speed and throughput in automated packaging.Factory Data Acquisition: Use the IC694BEM320 to expand data collection capabilities within RX3i systems for production monitoring and predictive maintenance.⚙️ Configuration and Setup GuideInstall the module into the RX3i universal backplane.Select input mode (32 or 64) via jumper settings.Connect RS485/RS422 cables to link remote devices.Configure device address in the RX3i controller software.Verify data exchange through the I/O Link diagnostic tool.�� Frequently Asked QuestionsQ1: How many modules can connect to one master? → No specific limit – depends on power supply capacity and address availability.Q2: What’s the difference between 32 and 64 input modes? → 64-input mode offers double the data points, ideal for large applications requiring more I/O.Q3: Can it work with CNC equipment? → Yes, fully compatible with GE Fanuc CNC Series 15, 16, 18, and F-D Mate controllers.Q4: Is external power required? → No, the module draws power from the system backplane.�� Package ContentsEmerson IC694BEM320 I/O Link ModuleInstallation and Configuration GuideTechnical Documentation�� Warranty & Shipping12-Month Quality WarrantyFast Worldwide Shipping via FedEx / UPS / DHLProfessional Technical Support Team�� Related ProductsIC695EDS001 DNP3 Communication ModuleIC695EIS001 Ethernet Server ModuleRX3i Main Controller Modules�� About World of PLCWorld of PLC Limited has over 10 years of experience in supplying industrial automation components from brands like GE, Emerson, ABB, and Siemens. We provide reliable PLC, DCS, and motion control solutions for global industries.�� Technical Support: [email protected]�� Website: https://www.oiltechcontrols.com/
